SPER25S01A 平面變壓器
類(lèi)別 : DC TO DC
| Part Number | SPER25S01A | |

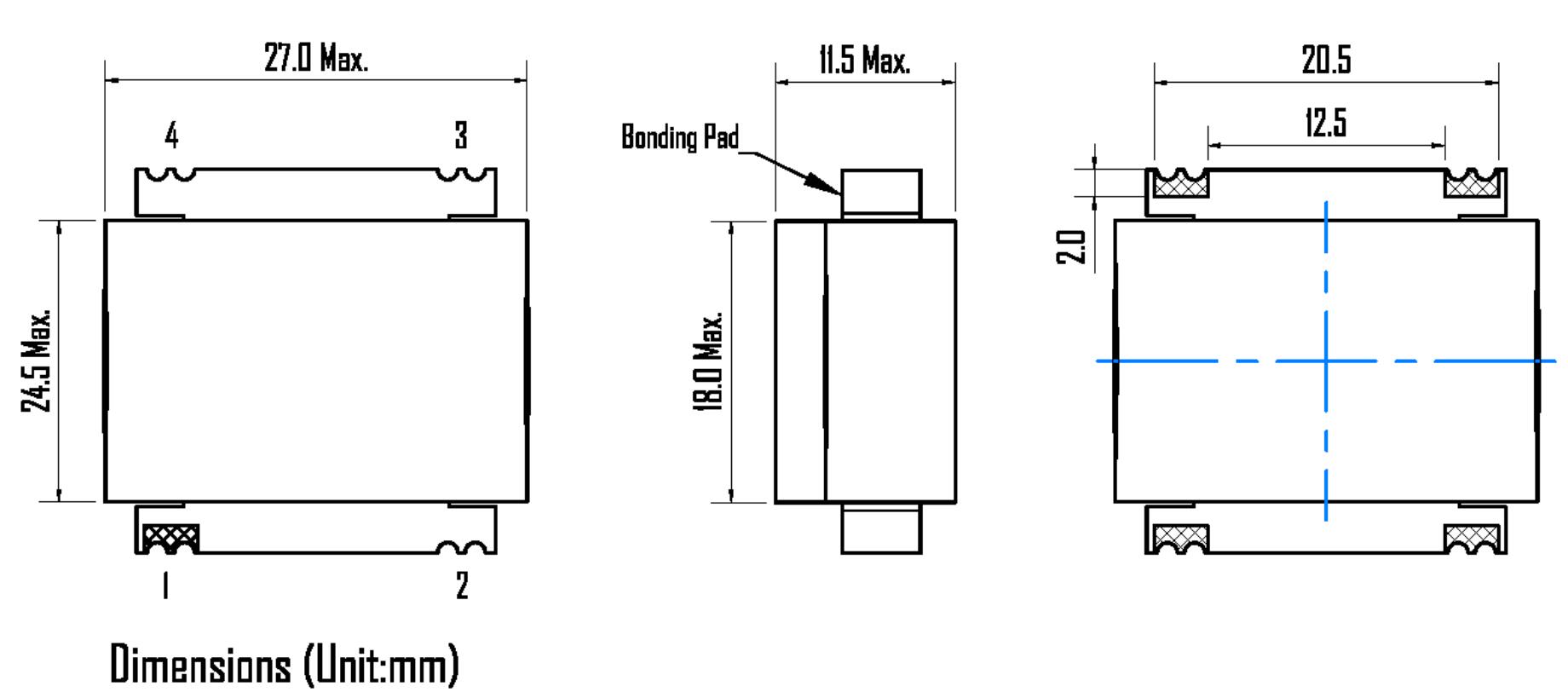

| Mech.Drawing | B Type | |
| Topology | Full bridge | |
| Turns Ratio | Pri:Sec | 4:1 |
| Pri Inductance Max(μH) | 85±25% | |
| Leakage Inductance Max(μH) | 0.05 | |
| DCR Max(mΩ) | Pri. | 3.8 |
| Sec. | 0.3 | |
| HI-Pot | 1000Vrms | |
NOTES:
● all Test Date Is Referenced To 25℃ Ambient
● Inductance Measured At 100kHz,0.1V
